Product Design B2B SaaS · CRM Lead Assignment & Distribution

Giving managers more control
over how leads are assigned

Leadrat is a CRM used by real estate brokerages to manage their sales pipeline. Leads were automatically assigned one after another but some teams needed to distribute them differently based on their sales team's capacity. I designed a way to set those rules without manually assigning every lead.

Role
  • Product Designer
  • Sole designer on this feature
Key collaborators
  • Product Manager
  • Engineering
Scope
  • Lead assignment and distribution
  • Live in the product
What shipped
4
Places to set a rule
2
Ways to share leads
5
Questions to set a rule
1
Rule, set once
Scroll to read
The shipped Project Assignment modal on a desktop display: Serene Shores, Assignment Config, Sequential Based, Select User, eight users selected, with a Save and Assign button

The shipped Project Assignment modal. One model, reused for users, teams, projects and properties.

00The Problem

Equal distribution was easy for the system, but not how teams worked

Leadrat handed out new leads in turns, one agent after another. Fair, and automatic. But a manager's team is never equal.

Six panel black and white comic. 1, a manager sees lead deficit numbers for four teams and does not know why. 2, leads are assigned one after another, but some teams need a different split based on capacity. 3, the manager assigns by hand or juggles spreadsheet numbers, which is time consuming, error prone and has no real time view. 4, the manager imagines setting the rules and letting the system distribute leads. 5, a configuration asks one question at a time, starting with what is being assigned. 6, the rule is saved and leads are distributed automatically, for example 50, 30 and 20 percent.
Round robin

Automatic, but equal

Manual assignment

Flexible, but repetitive

What managers needed

Controlled, but automatic

Why equal turns are not a useful split

Person A
Leads received20
Closes a weekabout 5
Person B
Leads received20
Closes a weekabout 15

Round robin gives both the same share because it only alternates. A manager could not say "give B more and A less".

Where the need came from

  1. 1
    Customer success brought the request.
  2. 2
    One customer was already splitting leads by hand, in percentages like 50 / 30 / 20.
  3. 3
    Three more clients asked for something similar, two in India and one in Dubai. Their requirements were not identical.
  4. 4
    The common thread: managers wanted to own the split, not just automate it.

So the question changed. How might we give managers control over lead distribution, without making them manually assign every lead?

01The Catch

A split is easy to say, and hard to deliver

A manager can say "Agent A gets 50 percent, B gets 30, C gets 20". The system has a harder job, because nobody knows how many leads will arrive today.

How the system keeps to the split

  1. 1
    The manager sets a target for each agent. For example 50 / 30 / 20.
  2. 2
    Every new lead goes to whoever is furthest behind their target. That gap is called the deficit.
  3. 3
    It repeats for every lead, so the split holds whether 3 leads or 300 arrive in a day.

Just giving every lead to the biggest share does not work, because the others would never get enough work.

Four people, four different problems

The customer
Wanted to split leads by percentage, as they already did by hand.
The product
Needed a model that works when future lead volume is unknown.
Engineering
Had to build the calculation, duplicate handling, tie breaking, conditions and toggles.
Me
How a manager sets all of that up without needing to understand any of it.

The PM described the backend as a long chain of conditions, yes or no checks and if else paths. I did not design that logic. I learned it with the PM and engineering, so the screen never promises something the system will not do.

Three design problems stood out

  • Too many options were visible at once.
  • The order of decisions was unclear.
  • Assignment lived in Global Config, away from the project it was about.
02My Role

I owned the experience of setting the rule

My part in the story: turning a complex assignment model into something a manager can understand.

Understand
Worked out what the system needed from incomplete requirements, and studied the backend logic with the PM and engineering.
Reframe
Challenged Global Config and moved assignment into the project and property context.
Structure
Replaced the everything visible screen with one decision at a time, and designed the five question sequence.
Design
Designed the UI for every base and type combination, including percentage allocation and the Save lock.
Edge cases
Low volume, concurrent edits, invalid combinations and permissions.
Collaborate
Worked with the PM on requirements and engineering on feasibility, supported handoff and refined the experience after launch.

What I did not own. The allocation algorithm and backend logic. Engineering built that. I designed how a manager configures it.

03Turn One

Assignment belongs next to the project it is about

My first direction put assignment in Global Config. It was a reasonable home for a system setting, and the wrong one for this.

Before, in Global Config
  1. 1
    Open Global Config
  2. 2
    Find the assignment rules
  3. 3
    Work out which project this is for
  4. 4
    Decide how its leads are distributed
After, in the project
  1. 1
    Open the project or property
  2. 2
    See what is being configured
  3. 3
    Open assignment from there
  4. 4
    Decide how its leads are distributed

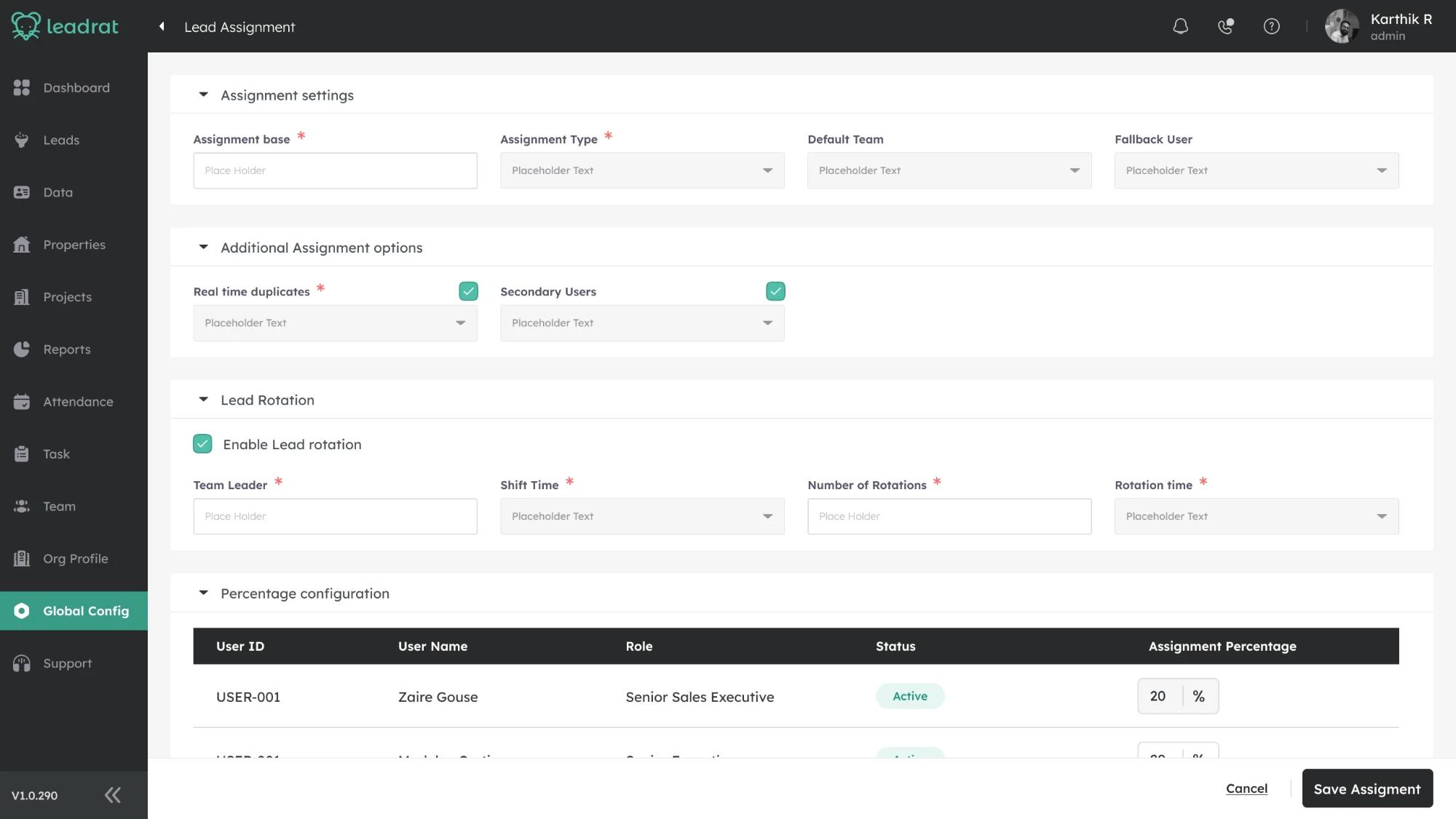

An earlier config screen showing Assignment settings, Additional Assignment options, Lead Rotation and a Percentage configuration table all open on one page
THE FIRST DIRECTION, GLOBAL CONFIGSettings, extra options, lead rotation and the percentage table, all open together. The PM called it too many options, and it was confusing. I agreed.

Why it mattered

  • A manager splitting leads needs to know what they are splitting first: project name, property type, location, lead source, lead quality, budget, or who already owns the relationship.
  • In Global Config the project was a step away from the decision, so the manager had to carry it in their head.
  • I moved the assignment action into project and property management. None of the rules changed. The question did, from "configure assignment" to "how should leads from this project be assigned".
  • The PM remembers this as one of the important changes in the project.
04Turn Two

Instead of configuring everything, decide one thing at a time

A manager arrives with one decision to make. The first screen asked them to understand several concepts before they could finish it.

THE SHIPPED FLOWAssignment opens from the project, then asks one question at a time.

The shipped model is five questions, in order

  1. 1
    What are we assigning? A user, a team, a property or a project. This comes first because it decides who can be picked at all.
  2. 2
    How should leads be distributed? Sequential or percentage based. They are two different ideas of fairness, and the answer decides which rules matter.
  3. 3
    Who receives them? Only people the rule can actually use.
  4. 4
    How do allocation and rotation work? Percentages, rotation and any extras for those people.
  5. 5
    What happens after saving? The system distributes every new lead on its own.

Each answer narrows what the next step can offer, so invalid choices disappear before they can be made.

What I kept out of the way

  • Percentage fields appear only once the strategy is percentage based.
  • Duplicate owners appear only once Real Time Duplicates is switched on.
  • The deficit calculation and the tie break never appear at all.
05Shipped

The system calculates. The manager decides

Here is where the story landed, in the order a manager moves through it. These are the real shipped screens.

Choose the base, then the type

  • Sequential or percentage based comes first, because it decides which rules matter next.
  • The same model applies to a person, a team, a project or a property.
  • One shape instead of four, so a manager learns it once.

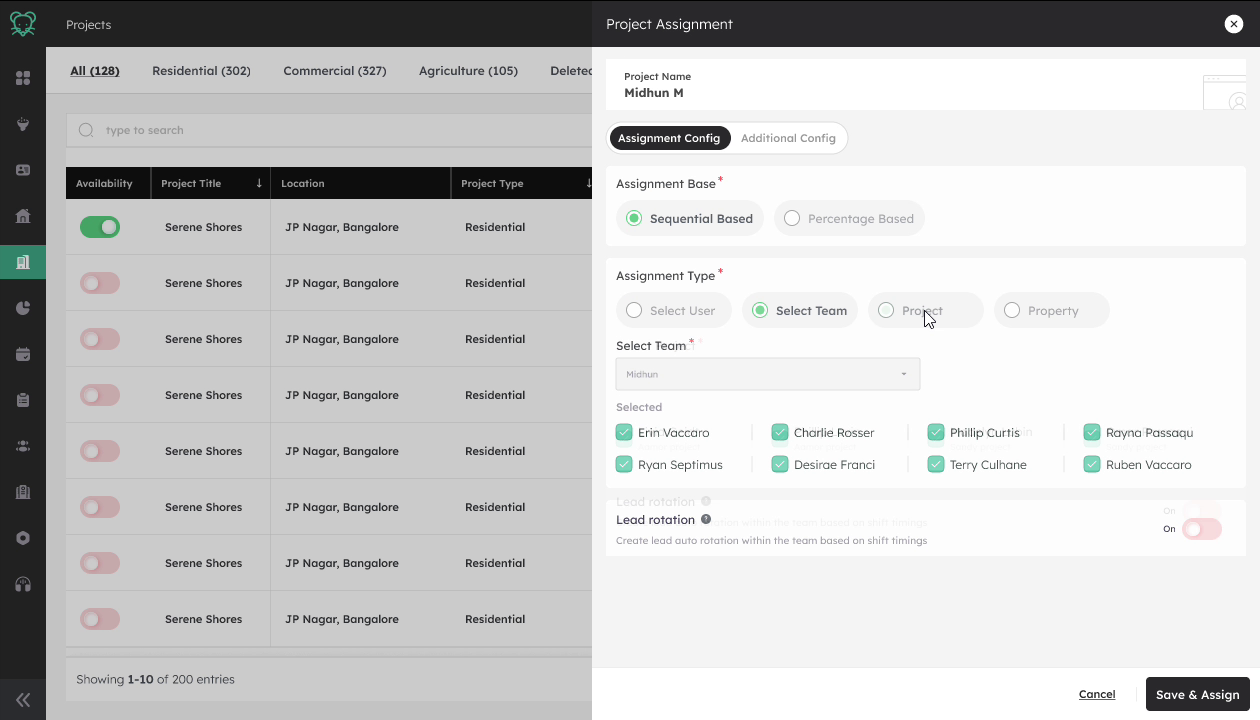

Project Assignment modal, Sequential Based, Select Team, eight selected team members, lead rotation toggle visible
SEQUENTIAL · TEAMThe same model applied to a whole team, so there is nothing new to learn.

Define allocation, then rotation

  • The manager sets what share of incoming leads each person should get.
  • The system handles the deficit calculation behind the scenes.
  • Lead rotation is optional, and rotates leads within a team by shift timings.

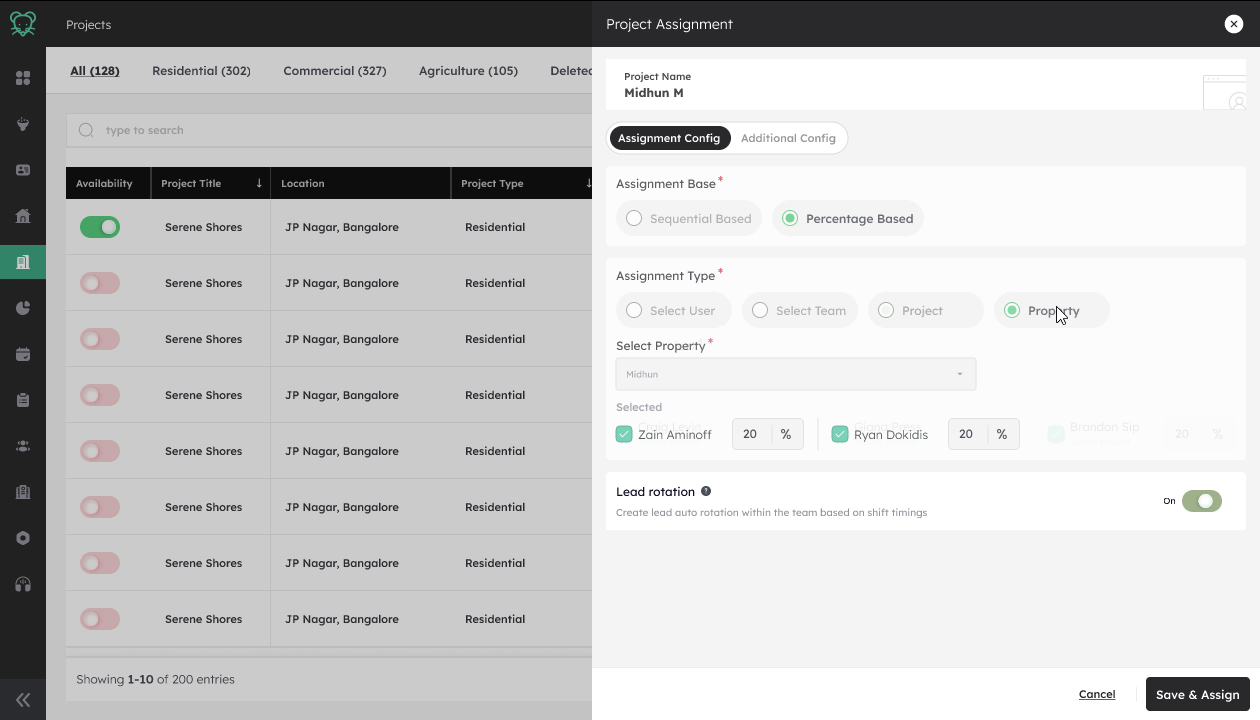

Percentage Based, Property, two selected users at 20 percent each, Lead rotation toggled on
PERCENTAGE · ROTATION ONQuota fields and lead rotation are set in the same moment, so they share a screen.

Save and assign

  • Save stays disabled until a percentage split totals exactly 100.
  • An invalid rule cannot reach the assignment engine.
  • Real Time Duplicates adds exactly one new decision, who handles the duplicate. Not a second config screen.

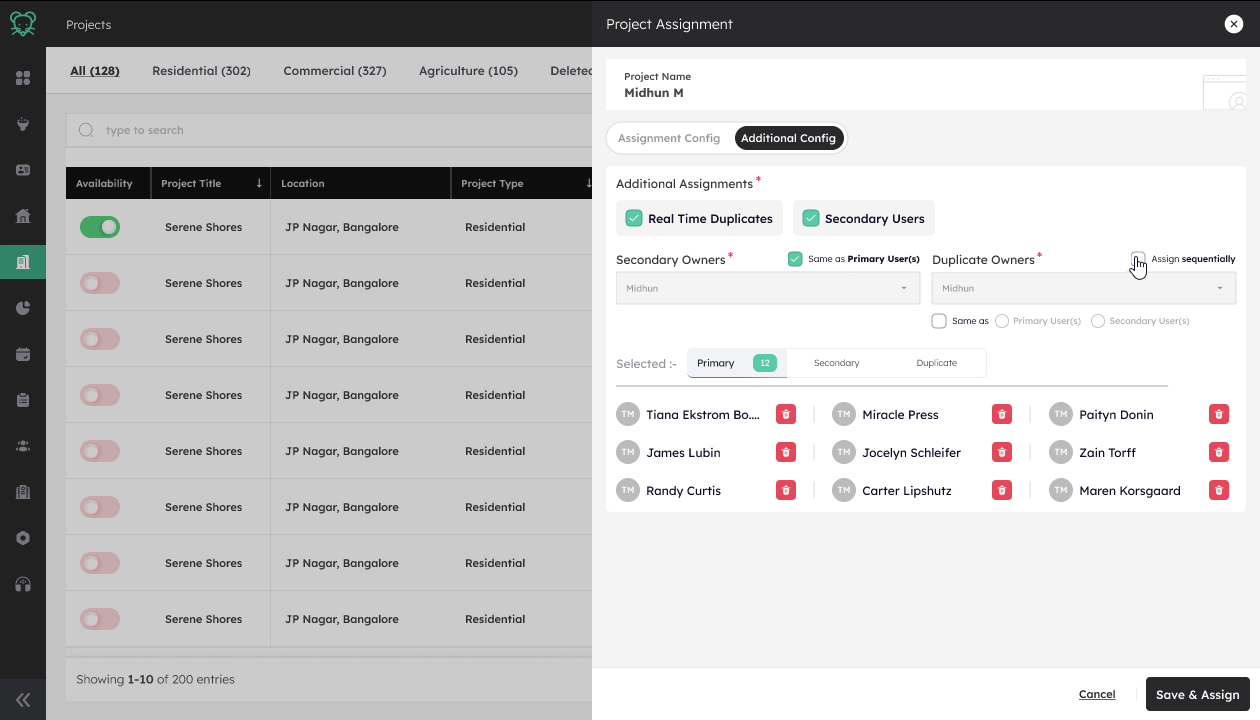

Additional Config tab with Real Time Duplicates enabled, showing a list of duplicate owners
ADDITIONAL CONFIGDuplicates are a separate decision, so the owner list appears only once the setting is on.

Try the rule

Try the rule
Lead 0 of 10, 50 / 30 / 20 split
Press Play all to watch the rule run.

A teaching aid on this page, not a product screen. Each lead goes to whoever is furthest behind, recalculated every time, so the split holds whether 3 leads or 300 arrive in a day.

06Constraints

I had to design within what the system could actually do

The system had rules about what could go with what. Engineering raised real concerns, and the screen had to follow every one.

The system saysSo the screen does
The type decides who can be picked→Only valid people appear
The strategy decides which rules apply→Percentage fields show only for percentage based
Extra rules can combine→Each one appears only when switched on
A bad combination breaks the engine→Save stays locked until the rule is valid

Safeguards I designed in

  • Input check. 0 to 100 only, and errors show as you type.
  • Save is a lock. It stays disabled until the split totals exactly 100.
  • Change isolation. A mid day edit only steers future leads.
  • Low volume. The first lead of the day goes to the highest share.
07The Ending

What shipped, and what I learned

The assignment feature is now live and being used by 240+ users, with no support tickets or complaints reported about the assignment flow.

Shipped

  • Percentage based and sequential lead distribution
  • Assignment by user, team, project and property
  • Rotation, duplicate handling and validation
  • Used by 240+ users in the product

Learned

  • The setup was easy for managers to understand and use
  • Complex assignment logic does not have to mean a complex interface
  • Clear rules and progressive configuration can make a technical workflow feel simple
  • After launch, the experience kept working without reported assignment related issues

What I would improve next

The assignment logic was complex, and some decisions were not directly validated with users before launch. With more time, I would:

  • Test the flow with more admins before and after launch
  • Make the tie break logic visible when it affects an assignment
  • Keep monitoring feedback as more teams use the feature

My biggest takeaway

Complex workflows can be simple when the configuration is clear.
